Tab-Diaper Taping Guide: Angle, Refastening & Fit

You don’t beat leaks with thicker briefs. You beat them with better taping. Angle matters. Refastening matters. Fit matters more than folks think.

Why Angle Beats Force

Tapes do two jobs: lock the waist and seal the legs. If you pull everything straight across, you miss the thigh seal. If you yank too tight, you choke the waist and still leak at the groin. So we angle.

Bottom tabs: aim slightly upward toward the navel. That closes the leg channel and hugs the thigh root.
Top tabs: aim slightly downward toward the hip bones. That stabilizes the waist and stops creep.
Keep the top pair level and symmetrical; consistency is king.
Don’t over-pull. Over-tension flattens the leak guards and can cause press-out.

Angle → Outcome

Tape position	Angle cue	What it’s doing	Fail mode if wrong	Fix in seconds
Bottom left/right	Slight up-angle	Creates thigh seal; supports leg cuffs	Gapping at groin; side seep	Re-open just bottom tab, rotate up 5–15°, smooth cuff
Top left/right	Slight down-angle	Stabilizes waist; shares load	Waist roll-down; backsheet creep	Re-fasten top pair a touch lower and level
All tabs	Symmetry	Even tension; no twist	One side bites, other side gaps	Mirror the tighter side; equalize

Pro tip: Pre-shape the brief. Fold it lengthwise (inside-out fold), run your fingers to pop the leak guards upright, then wrap. Takes ten seconds. Pays all day.

Tab-Diaper-Taping-Guide-Angle,-Refastening-&-Fit-3

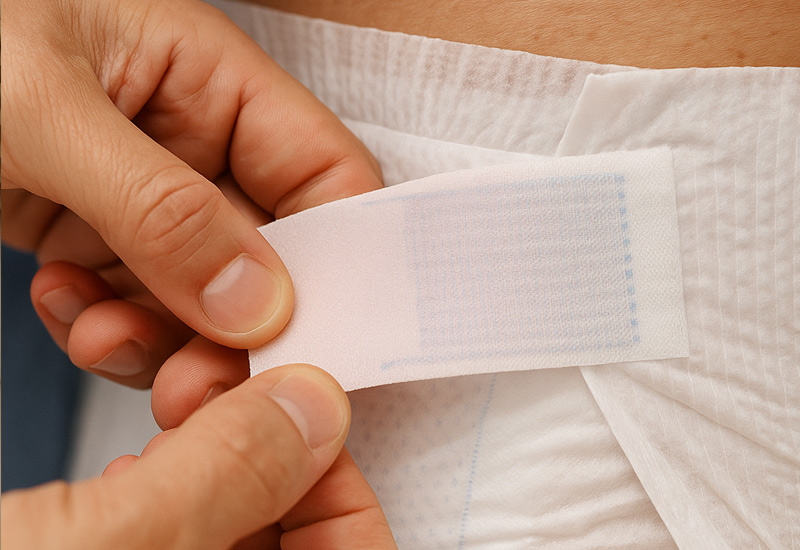

Refastening Without Wrecking the Shell

The magic piece is the landing zone—the front panel designed to take multiple openings/closings. Two common systems:

Two-piece “double tape”: Base tape anchors to the shell; the top tape opens/recloses as needed. Good for stepwise tightening during wear.
Micro-hook (hook-and-loop): Grabs a soft frontal panel. Very forgiving for micro-adjustments.

Do not dust the front with body powder or lotion. Glue hates oil. Hooks hate powder. If the panel got contaminated (it happens), wipe and dry before re-taping. Quick wipe, brief air.

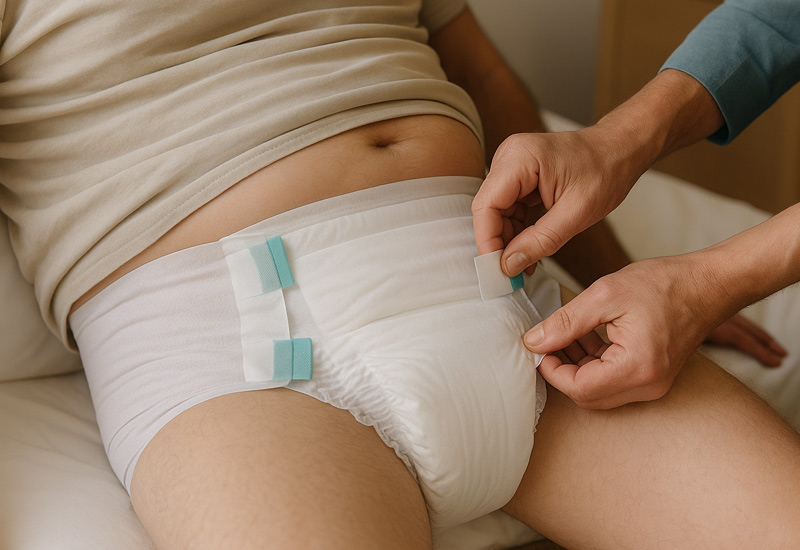

Fit Checks

Finger-glide test at the thighs. You should slide one finger under the leg elastic with slight resistance. Too easy? Too loose. Can’t slide? Too tight, risk marks.
Waistline test. The top edge should sit between navel and hip bones. Way high or way low? Likely wrong size or wrong angle.
Leak guard stand-up. Visually confirm the inner standing cuffs are upright, not trapped flat under the tapes.
Walk test. Two steps, small squat. If you hear heavy crackle and the front panel drifts, top tapes are too high or uneven.

Tab-Diaper-Taping-Guide-Angle,-Refastening-&-Fit-1

Some Scenarios

Bedtime, long stretch, minimal changes

Pre-shape; cuffs up.
Bottom tabs: modest up-angle to “hug” the thigh roots.
Top tabs: a hair lower than daytime, slight down-angle for anti-creep during turning.
Optional: place a flow-through booster if you use them; leave the wetness indicator visible for night checks.
Consider a higher-capacity build if the user’s intake is high—see Professional Leak Proof 2XL Adult Diapers with Tabs for heavy-duty use cases.

Day shift, mobile user, quick bathroom breaks

Aim for faster re-closing: micro-hook or solid landing panel.
Top tabs level; bottom tabs slightly up.
Keep a “re-tighten step”: after first hour of movement, open only the top pair 1–2 cm and re-settle.
Slim-to-medium body? See XL Adult Diapers with Tabs.

Bariatric body, soft waist, larger thighs

Prioritize thigh seal. Start bottom tabs a touch higher on the landing panel to clear soft tissue.
Top tabs anchor slightly lower than you think to avoid roll-down.
Use the mirror trick: check both sides look the same.
For size and shell coverage, check 3XL Adult Diapers with Tabs.

Bedridden change (side-lying)

Pre-shape while the brief is still flat; open cuffs.
Tuck the back sheet under the hip; keep the frontal panel square.
Secure the bottom-side tabs first (the side touching the bed), then roll and finish.
Don’t over pull; side-lying invites asymmetric tension. Reset once if needed.

Troubleshooting

Leaks at the leg only: Bottom tabs are the culprit nine times out of ten. Re-angle up toward the navel; smooth the inner cuff.
Waist roll-down at front: Top tabs too high or too tight. Re-close lower with a small down-angle.
Tape won’t hold: Panel oily or dusty. Wipe, dry, re-close. If still weak, place a reinforcement strip (secondary tape) on top.
Red marks on thighs: Bottom tabs over-tight, or cuffs trapped flat. Loosen a click; lift cuff.
“Double diapering” idea: Don’t. Outer shell blocks flow-through and forces side blowout. Use one brief plus booster if your care protocol allows.

A little “wrong” phrase, clear meaning: tight not equal secure; correct angle equal secure.

Taping Angle vs. Seal Quality

Goal	What to do	Why it works	What you’ll see
Lock the thigh root	Bottom tabs up-angled, tension moderate	Directs elastic toward groin; maintains channeling	Clean “hug” at leg, cuffs stand up
Stop waist creep	Top tabs slightly down, level pair	Shares vertical load; prevents roll-down	Front panel stays flat while walking
Balance left / right	Mirror the angles, equal spacing	Equalizes forces; stops twist	Wetness indicator stays centered
Keep adjustability	Use landing zone; open only one tab at a time	Preserves panel integrity	Re-tighten mid-shift without damage

Scenario-to-Setup Matrix

Scenario	Body shape	Tape strategy	QC check	Add-ons
Night, long wear	Average build	Bottom up, top slightly down; top pair a touch lower	Finger-glide + squat test	Booster if approved; monitor indicator
Day, active	Slim–medium	Symmetric, faster re-close priority	Walk test; re-tighten top pair 1 step	Choose micro-hook frontal
Bariatric	Larger thighs, soft waist	Start bottoms higher; tops lower to avoid roll	Visual symmetry; no waist roll	Wider landing panel helpful
Bedridden	Side-lying change	Secure bed-side tabs first; finish on open side	Re-smooth cuffs; no twist	Underpad during change to keep sheet dry

OEM/ODM Notes for Buyers

If you lead sourcing for a distributor, hospital, or DTC line, build “tape success” into your spec—not just absorbency.

What to specify with your Adult Diapers With Tabs manufacturer:

Landing zone width & texture. Wide enough for honest angle play; textured to hold micro-hook in multiple spots.
Tape system. Micro-hook for high re-close cycles; double-tape for hybrid workflows.
Elastic geometry. Leg elastic with enough return force to stand cuffs after pre-shape.
Frontal panel print. Discreet alignment marks help trainees hit symmetry (no need for big numbers or childish graphics).
Wetness indicator behavior. Clear state change that stays legible after minor re-fastens.

LOVINHUG is an Adult Diapers With Tabs factory and OEM/ODM partner. We design around real care workflows: quick pre-shape, clear alignment, durable landing zones, and refastenable systems that don’t quit mid-shift. Certifications? Adult Diaper CE, FSC, and NEW CGMP Certificate—because compliance keeps your brand safe across North America, Europe, MENA, SEA, LATAM, and Oceania. If you want private-label briefs that tape right the first time and the thousandth, talk to us.

Use Cases

Heavy-duty, leak-resistant builds for long nights or limited changes: Professional Leak Proof 2XL Adult Diapers with Tabs.
Slimmer users who still want tabbed control and clean taping angles: XL Adult Diapers with Tabs.
Larger waists and thighs needing stable thigh seal and wide landing zone: 3XL Adult Diapers with Tabs.

Final Wrap

Bottom tabs slightly up to lock the leg. Top tabs slightly down to hold the waist. Use the landing zone. Re-tighten once as the brief settles. Do the finger-glide, do the walk test. Don’t double brief. Keep cuffs upright.

If you’re ready to trial or spec a private-label line, welcome to fill the contact form below. We’ll reply fast.
